纯 css 实现网格背景

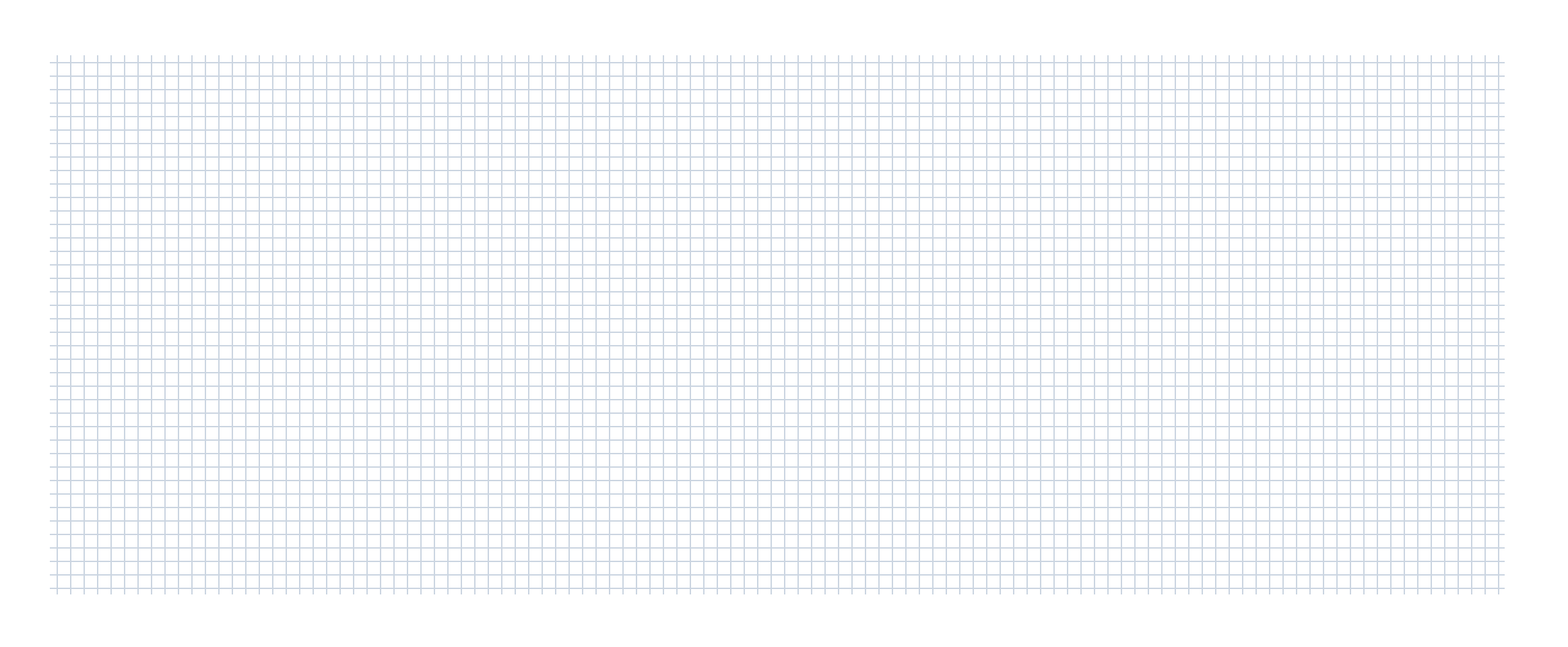

线性渐变

• 使用 linear-gradient() 函数实现网格，既需要横向的线条，也需要纵向的线条
• 使用 background-size 控制网格间隙大小

grid.html

<div class="grid"></div>

grid.css

.grid {
	width: 1080px;
	height: 400px;
	background-image: linear-gradient(to right, #ccc 1px, transparent 1px),
		linear-gradient(to bottom, #ccc 1px, transparent 1px);
	background-size: 10px 10px;
	background-position: center;
	margin: 100px auto;
}

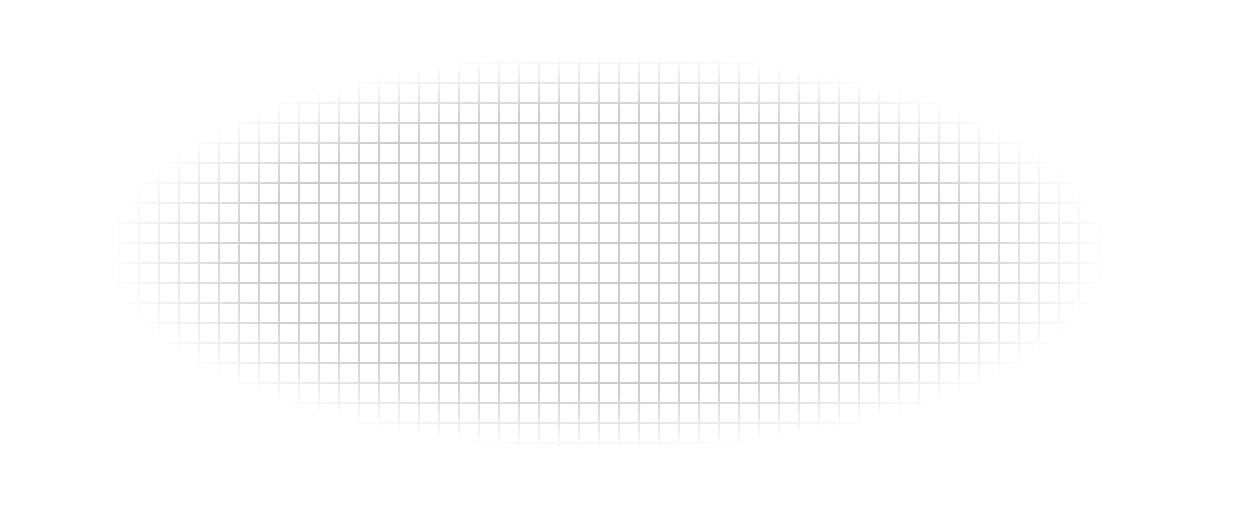

1、边缘虚化

• 使用 mask-image 属性作为元素蒙版层的图像，蒙版层文档，
• 使用 radial-gradient (径向渐变)实现
• 使用 background-size 控制网格间隙大小

grid.html

<div class="grid"></div>

grid.css

.grid {
	width: 1080px;
	height: 400px;
	background-image: linear-gradient(to right, #ccc 1px, transparent 1px),
		linear-gradient(to bottom, #ccc 1px, transparent 1px);
	mask-image: radial-gradient(
		ellipse 50% 50% at 50% 50%,
		#000 70%,
		transparent 100%
	);
	background-size: 10px 10px;
	background-position: center;
	margin: 100px auto;
}

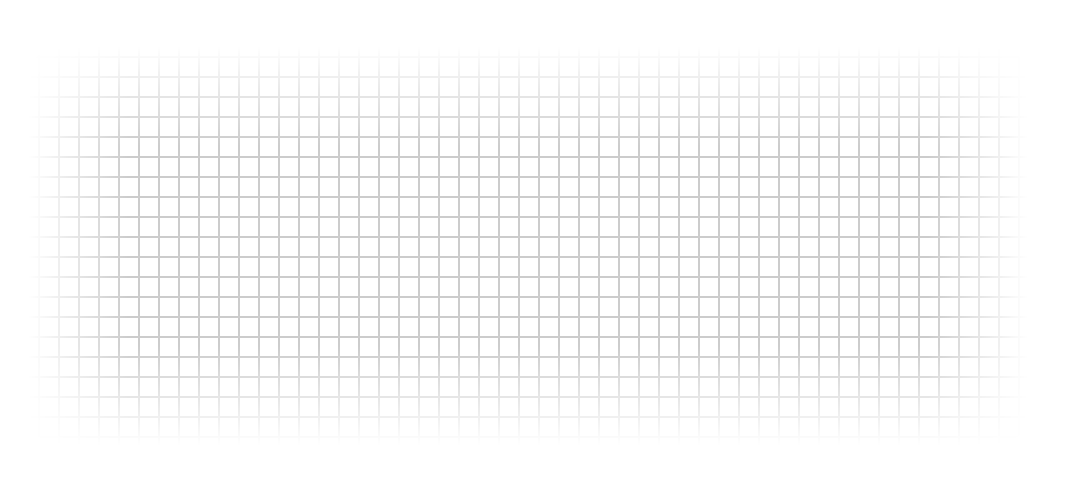

2、四周渐变

• 使用 background-size 控制网格间隙大小

grid.html

<div class="grid"></div>

grid.css

.grid {
	width: 500px;
	height: 200px;
	background-image: linear-gradient(to right, #ccc 1px, transparent 1px),
		linear-gradient(to bottom, #ccc 1px, transparent 1px);
	mask-image: linear-gradient(
			to bottom,
			transparent,
			#fff 50px calc(100% - 50px),
			transparent
		), linear-gradient(to right, transparent, #fff 50px calc(100% - 50px), transparent);
	mask-composite: intersect;
	background-size: 10px 10px;
	background-position: center;
	margin: 100px auto;
}

网状点阵

• 使用 radial-gradient 函数，创建圆形填充背景色
• 使用 background-size 控制网格间隙大小

grid.html

<div class="grid"></div>

grid.css

.grid {
	width: 500px;
	height: 200px;
	background-image: radial-gradient(circle, rgb(203 213 225) 2px, #fff 2px);
	background-size: 20px 20px;
	background-position: center center;
	margin: 100px auto;
}

格子花纹

grid.html

<div class="grid"></div>

grid.css

.grid {
	width: 500px;
	height: 200px;
	background-image: linear-gradient(45deg, #8d8b8b 25%, transparent 0),
		linear-gradient(-45deg, #8d8b8b 25%, transparent 0), linear-gradient(
			45deg,
			transparent 75%,
			#8d8b8b 0
		), linear-gradient(-45deg, transparent 75%, #8d8b8b 0);
	background-position: 0 0, 0 10px, 10px -10px, -10px 0;
	background-size: 20px 20px;
}

工具生成

网格点阵花纹

线条宽度(1px)：1px10px

网格大小(10px)：1px100px

线条颜色：

是否显示边缘遮罩

渐变半径(1px)： 0px100px

.grid {
	width: 500px;
	height: 200px;
	background-size: 10px 10px;
	background-position: center center;
	background-image: linear-gradient(to right, #cbd5e1 1px, transparent 1px),	linear-gradient(to bottom, #cbd5e1 1px, transparent 1px);
	mask-image: linear-gradient(to bottom, transparent, #fff 1px calc(100% - 1px), transparent),
            linear-gradient(to right, transparent, #fff 1px calc(100% - 1px));
	mask-composite: intersect;
}
